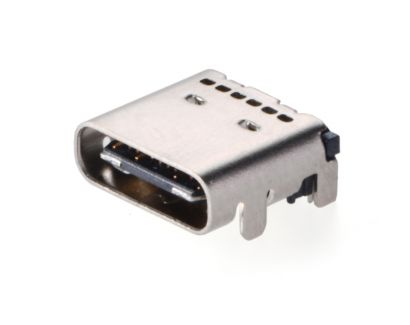

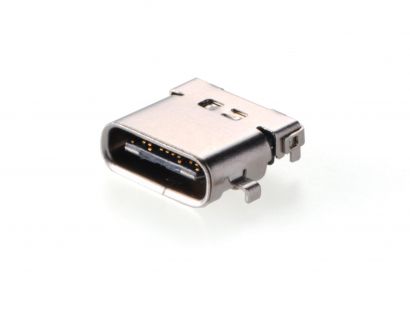

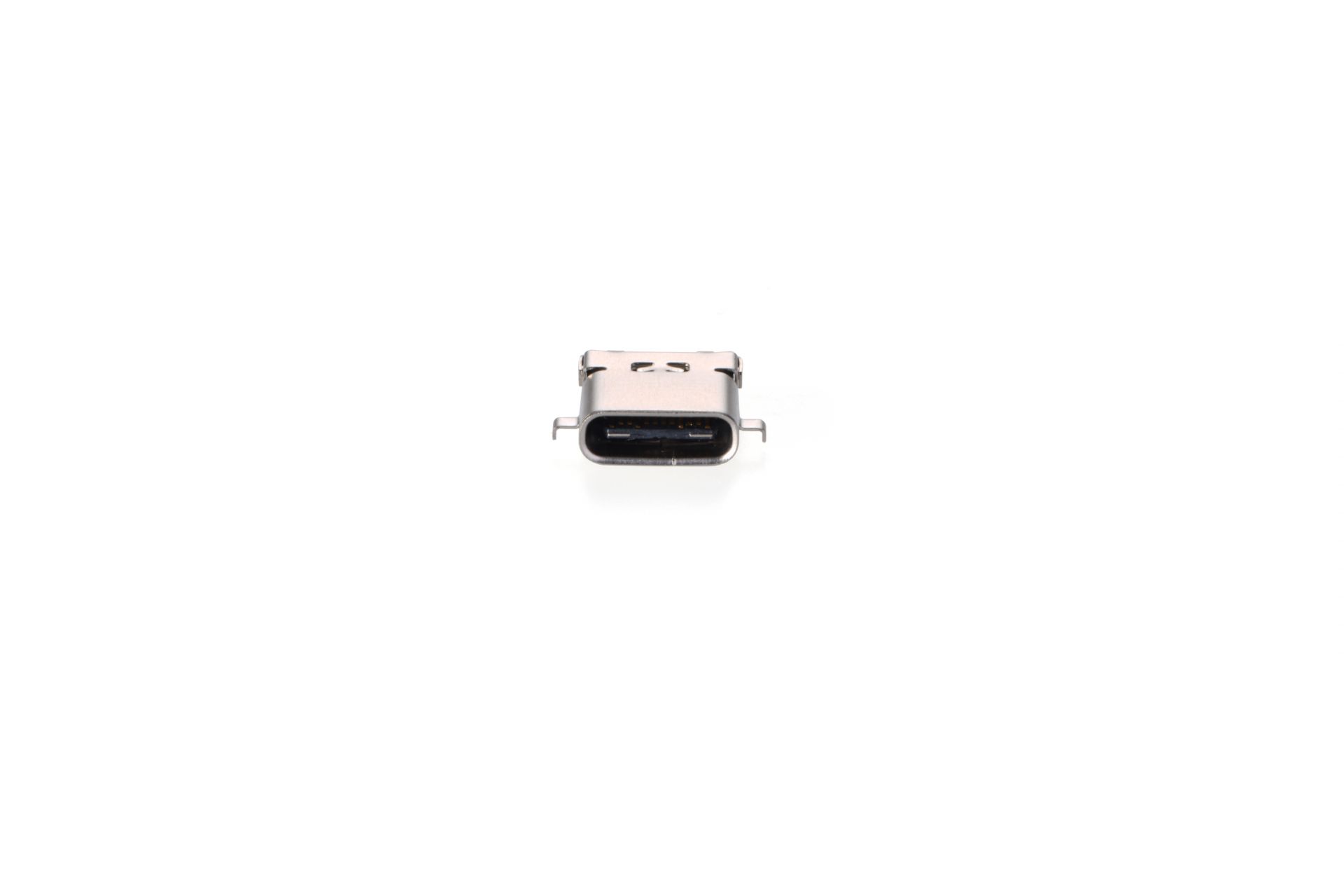

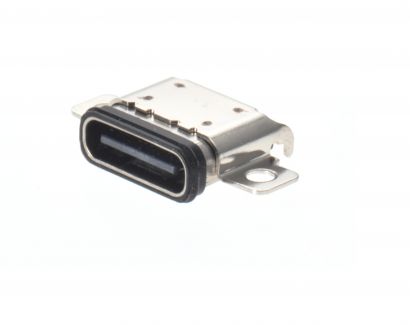

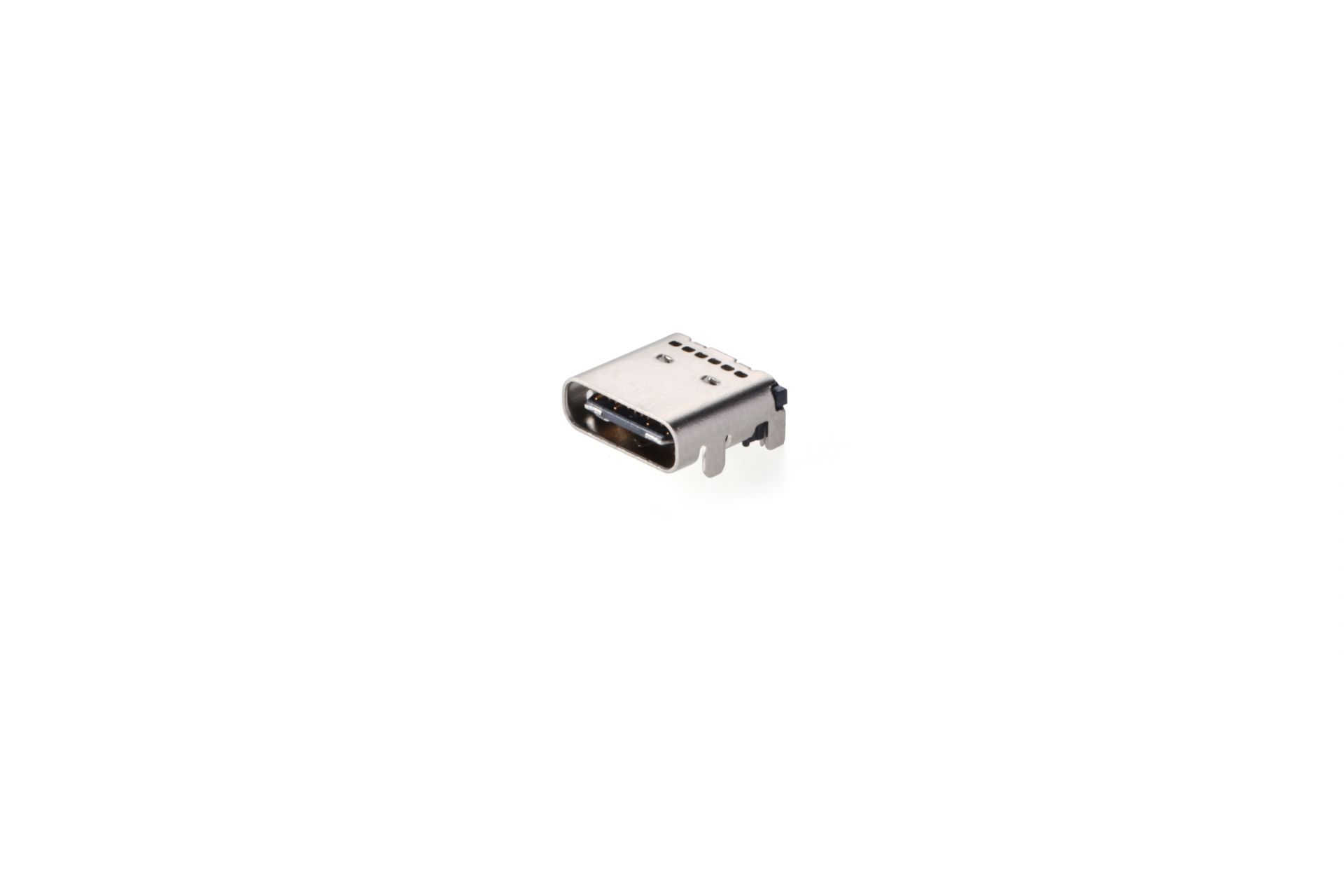

USB Type C
USB3
USB TYPE C SMT 90°/180°, DIP+SMT TYPE
-
USB3(1)
-
24(2)
-
C(3)
-
S(4)
-
W(5)
-
H(6)
Description
- (1) USB3:USB TYPE C SERIES
(2) 14:14 PIN - 16:16 PIN
-
20:20 PIN(BOX TYPE)
24:24 PIN -
(3) C:TYPE C
-
(4) S:RECEPTACLE
P:PLUG -
(5) D:DIP STRAIGHT
R:DIP RIGHT ANGLE
S:SOLDER WIRE/MOLDING TYPE

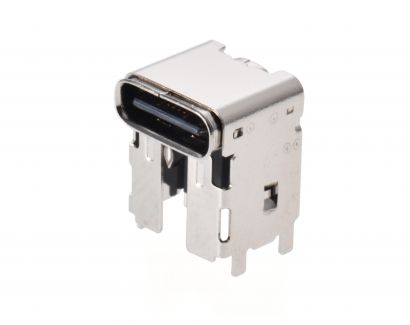

U:DIP UPRIGHT TYPE
U-B:DIP UPRIGHT TYPE CH=7.2mm
UW:SMT UPRIGHT TYPE
V:SMT STRAIGHT
W:SMT RIGHT ANGLE
Y: DIP & SMT RIGHT ANGLE -
(6) RoHS
